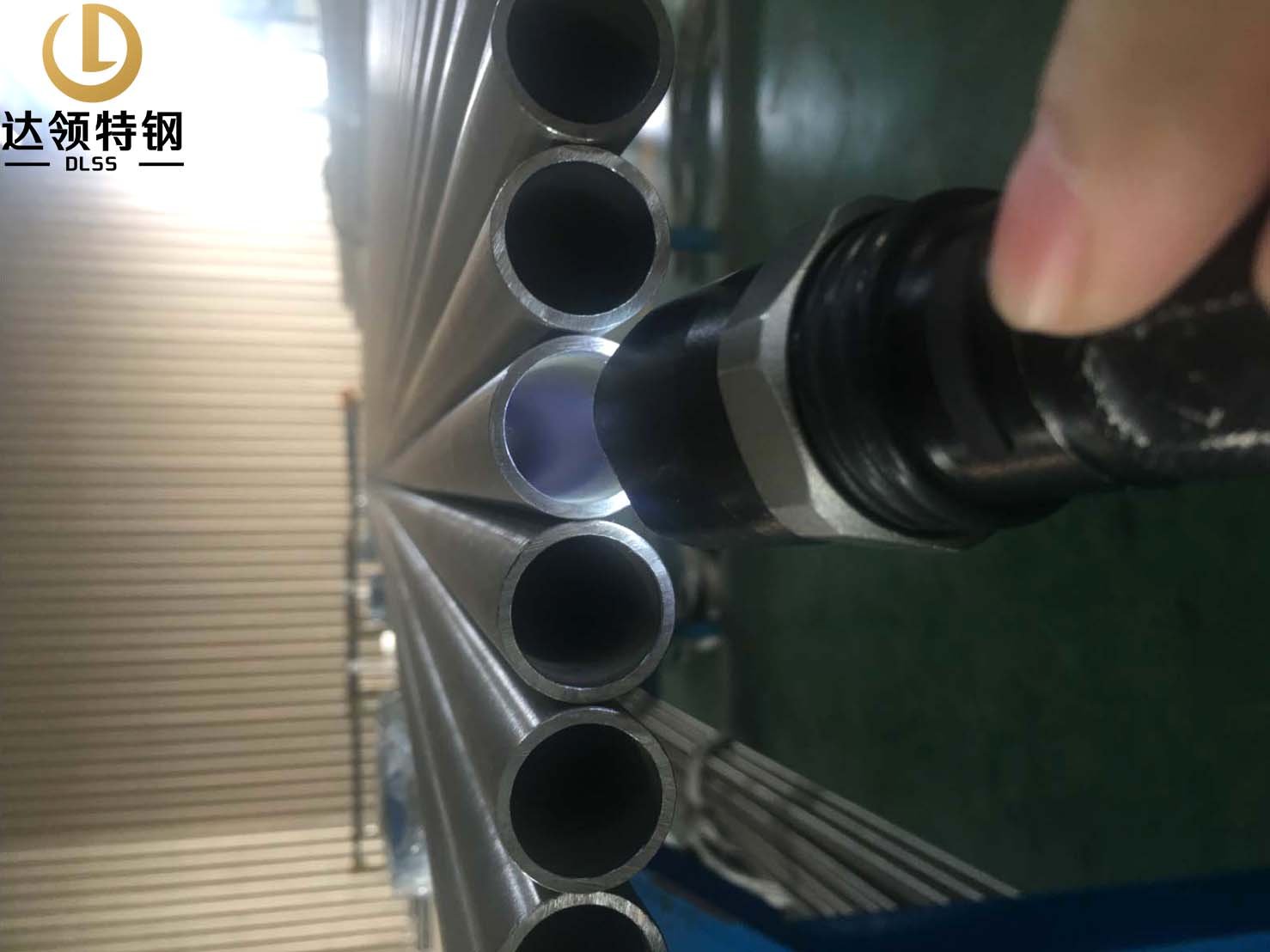

ASTM B163 Incoloy825(UNS N08825) Seamless Tube 25.4*2.11*5555 MM with Bright Annealed Surface
| Brand | DALING Special Steel (DLSS) |
|---|---|
| Certificate | ABS, DNV.GL, LR, BV, NK, PED, AD2000, ISO, CCS, CRN, API |
| MOQ | 1PC |
| Delivery | ≥30 Days |
| Testing | HT, ET, UT |
DALING SPECIAL STEEL, manufacturing and exporting Piping materials for more than 30 years, including Austenitic Stainless Steel, Super Duplex Steel, Nickel Alloy Steel (Hastelloy/Monel/Inconel/Incoloy), Copper and Copper Alloy Steel. DALING has the most advanced producing and testing equipments, our factory have been approved by: ABS, DNV.GL, BV, LR, NK, PED, AD2000, CCS, TS, ISO9001, ISO 14001, ISO18001, API, CRN No etc.
So far, more than 3200 companies from 56 countries trust us, such as Italy, UK, Germany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Australia, New Zealand, Poland, France etc, the count is increasing.
DALING is not just producer, we are more like problem solvers and focus on creating value for customers.
Material Grade:
| Alloy | Alloy 200(N02200), Alloy 201(N02201), Alloy 20(N08020), Alloy 28(N08028), Alloy 31(N08031), Alloy 36 (K93600), Alloy 904(N08904) |
| Hastelloy | Hastelloy C22(N06022), Hastelloy C276(N10276), Hastelloy C4(N06045), Hastelloy S(N06635), Hastelloy C2000(N06200), Hastelloy G-30(N06030), Hastelloy G-35(N06035), Hastelloy X(N06002), Hastelloy N(N10003), Hastelloy B(N10001), Hastelloy B-2(N10665), Hastelloy B-3(N10675) |
| Monel | Monel 400(N04400), Monel 401 (N04401), Monel 404 (N04404), Monel K500(N05500), |
| Inconel | Inconel 600(N06600), Inconel 601(N06601), Inconel 617(N06617), Inconel 625(N06625), Inconel 690(N06690), Inconel 718(N07718), Inconel X-750(N07750) |
| Incoloy | Incoloy 800(N08800), Incoloy 800H(N08810), Incoloy 800HT(N08811), Incoloy 825(N08825), Incoloy 925(N08925), Incoloy 926(N09926) |
| Others | 253MA(S30815), 254SMO(S31254), S32304, 17-4PH(S17400), 17-7PH(S17700), 15-7PH(S15700) |
Incoloy825 Material (N08825) has excellent resistance to chloride-ion-induced stress corrosion cracking, reducing environments containing phosphoric and sulf
uric acids, oxidizing environments containing nitric acid and nitrates, and pitting, crevice corrosion and intergranular corrosion. It has good mechanical properties at cryogenic temperature to moderately high temperature up to 538℃.
Physical Properties:
| Density | 8.14 g/cm3 |
| Melting Range | 1370-1400℃ |
Chemical Composition % for Incoloy Alloy 800 Series Pipes/Tubes：
| Alloy 825 | Ni | Fe | Cr | Mb | Cu | Ti | C | Mn | S | Si | Al |
| 38.0-46.0 | 22.0 min | 19.5-23.5 | 2.5-3.5 | 1.5-3.0 | 0.6-1.2 | 0.05 max | 1.0 max | 0.03 max | 0.5 max | 0.2 max | |
| Alloy 800 | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si | |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | 0.75 max | 0.15-0.60 | 0.15-0.60 | 0.1 max | 1.5 max | 0.015 max | 1.0 max | ||
| Alloy 800H | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si | |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | 0.75 max | 0.15-0.60 | 0.15-0.60 | 0.05-0.10 max | 1.5 max | 0.015 max | 1.0 max | ||
| Alloy 800HT | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si | |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | 0.75 max | 0.25-0.60 | 0.85-1.20 | 0.06-0.10 max | 1.5 max | 0.015 max | 1.0 max |
Applications:
To be the most reliable pipeline solution provider in the world.
